Handstanders
Project Overview
Handstanders are open-ended blocks that can stack into many different configurations. With a little imagination, they can become a snail, seahorse, butterflies, ocean waves, and so much more. Handstanders bring play and creativity into everyday life.
Processes/Tools
3D Printing, CNC Milling, CAD and CAM on Fusion 360
Material
Aluminum stock, Brass Stock, Magnets
Design Process
Ideation, 4 rounds of prototyping, CAD, CAM, and machining
Ideation

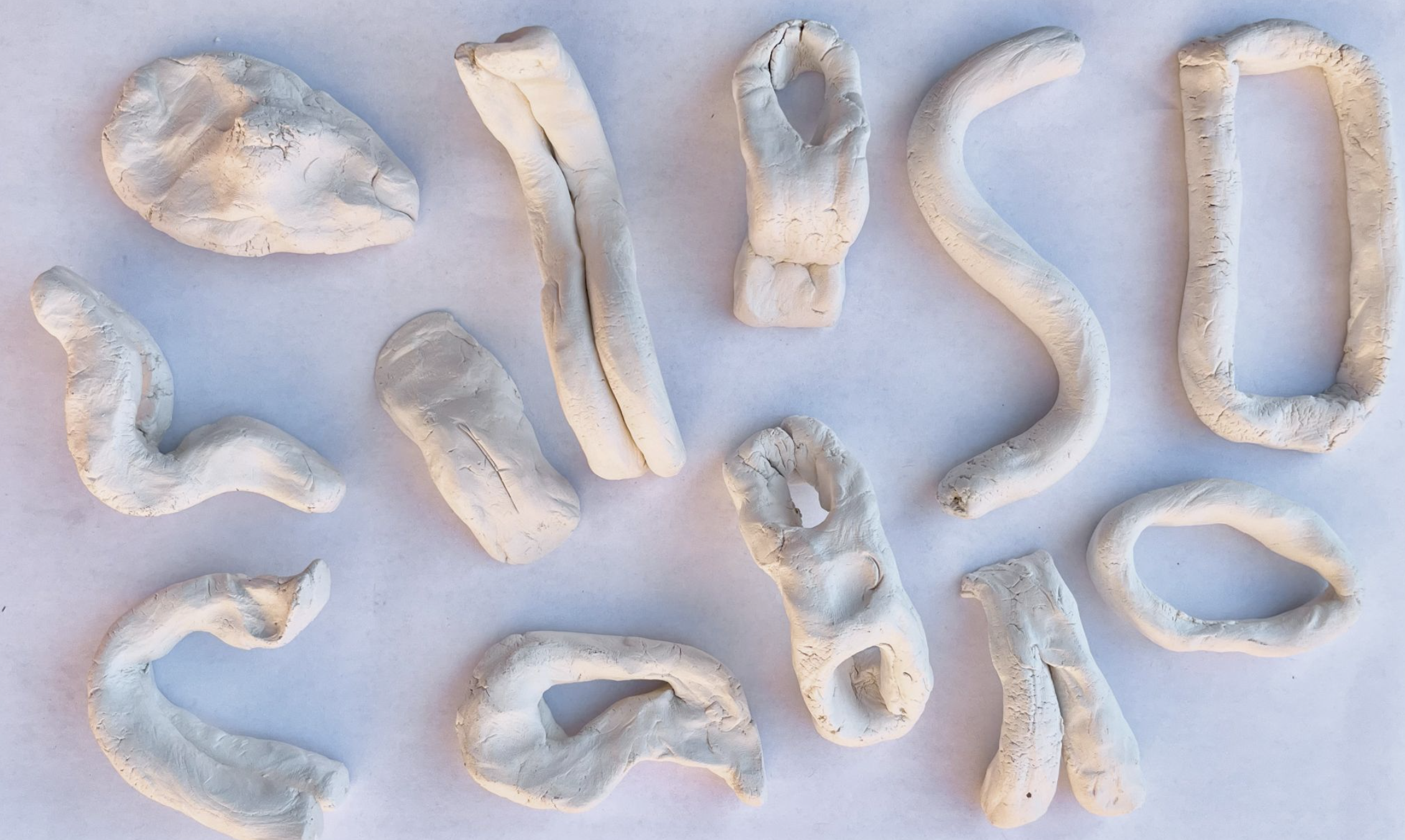

I used techniques such as mindmapping, lists, and sketching in order to come up with the oyster and pearl design direction.
Rapid Prototyping
I initially prototyped with cardboard to test the ergonomics of my design, specifically looking at the angle of the top section and the overall size and shape. I also used beads to test how I would incorporate pearls into the design.
CAD, CAM, and More Prototyping
Testing out different positions for the pearls
Setting up CAM toolpaths (pocket, adaptive, 2D chamfer, scallop, and debur) and ensuring that my design has a clean machine finish.
Final CAD prototype
Back to CAD! I decided to increase the radius of internal corners in my design in order to use less tooling
3D printing the final design to ensure functionality
CAD/CAM for the soft jaws
Machining
1. Cut top side (50 minute cut)
2. Cut soft jaws that will clamp the part as it cuts the second side.
3. Cut bottom side (1 hour cut)
